Description

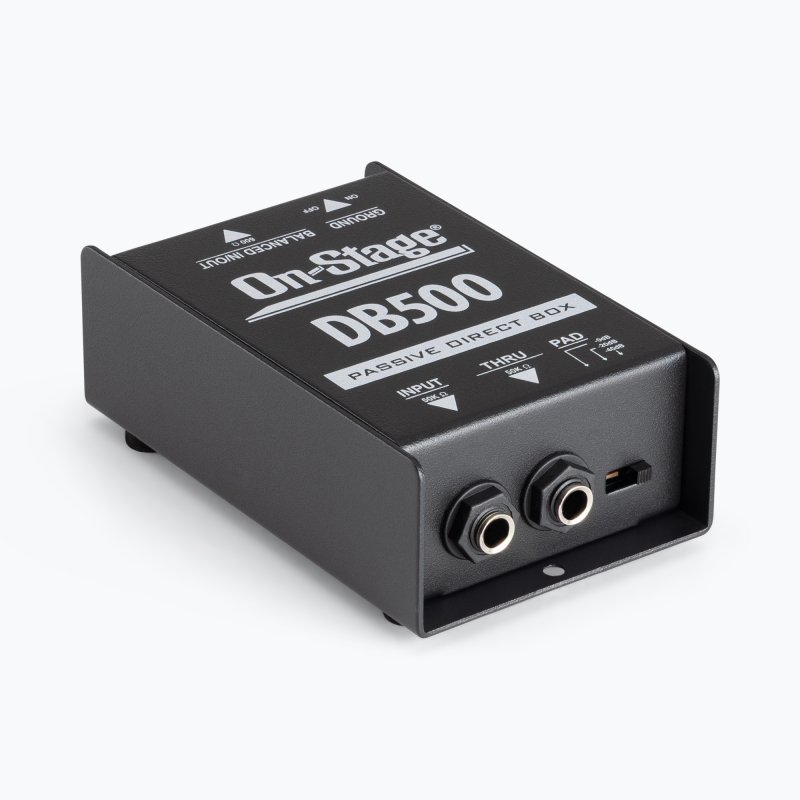

The On-Stage Passive DI Box (DB500).
Features
- Converts a high-impedance (1/4″) input to a balanced, low-impedance (XLR) output
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Passive circuit does not require a power supply or batteries
- High-quality transformer for low distortion and an isolated signal path
- Throughput connector passes unaltered signal to stage amp
- Heavy-duty metal enclosure for component protection
Specifications
- Application: Acoustic guitars, bass guitars, keyboards, and more
- Construction: Metal
- Dimensions: (W)4.75″ x (H)1.375″ x (D)2.875″
- Input Impedance: 350K Ohms
- Inputs: 1/4″
- Output: XLR
- Output Impedance: 80 Ohms
- Pad: 20dB, 40dB, Ground Lift: Yes
- Power: Passive/not required
- Product Type: Direct Box
- Weight: 0.5 lb
UPC: 659814883837
Questions about this item? Call Rock Solid Music at (989) 486-9900 or stop by 420 Cambridge Street, Midland.
